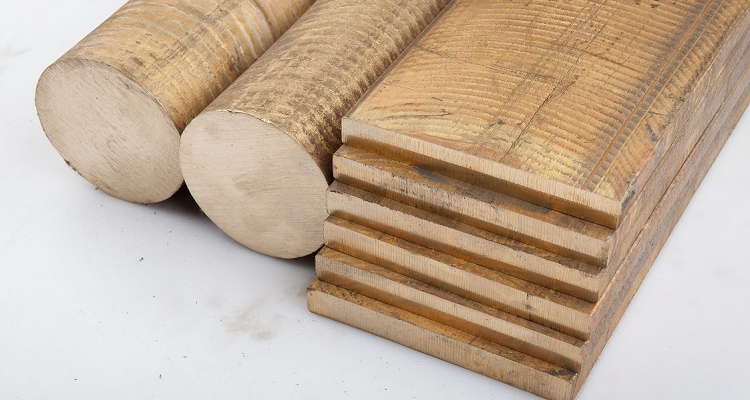

C95400 “9C” Aluminum Bronze

Specifications Download PDF Version CHEMICAL COMPOSITION:   Cu Al Fe Mn Ni(1) Min./Max. 83.0 min 10.0-11.5 3.0-5.0 .50 1.5 Nominal 83.2 10.8 4.0 - - MECHANICAL PROPERTIES: Temper Section Size Cold Work Typ/ Min Temp Tensile Strength Yield Strength (0.5% ext. under load)     El Rockwell Hardness   Brinell Hard.         in. %   F ksi ksi     % B C F 30T   500 3000         mm.     C MPa MPa                           As Sand Cast M01 0.0 0 TYP 68 85 35     18 - - - -   - 170         0.0     20 586 241     18 - - - -   - 170       As Centrifugal Cast TQ50 0.0 0 SMIN 68 90 45     6 - - - -   - 190         0.0     20 620 310     6 - - - -   - 190       M02 0.0 0 SMIN 68 75 30     12 - - - -   - 150         0.0     20 515 205     12 - - - -   - 150       As Continuous Cast TQ50 0.0 0 SMIN 68 95 45     10 - - - -   - -         0.0     20 655 310     10 - - - -   - -       M07 0.0 0 SMIN 68 85 32     12 - - - -   - -         0.0     20 586 221     12 - - - -   - -       As Permanent Mold Cast M05 0.0 0 SMIN 68 100 40     10 - - - -   - -         0.0     20 690 275     10 - - - -   - -       As Sand Cast TQ50 0.0 0 TYP 68 105 54     8 - - - -   - 195         0.0     20 724 372     8 - - - -   - 195       M01 0.0 0 SMIN 68 75 30     12 - - - -   - 150         0.0     20 517 207     12 - - - -   - 150       M01 0.0 0 SMIN 68 75 30     12 - - - -   - 150         0.0     20 515 205     12 - - - -   - 150       M01 0.0 0 SMIN 68 75 30     - - - - -   - -         0.0     20 517 207     - - - - -   - -       As Permanent Mold Cast M05 0.0 0 TYP 68 105 46     11 - - - -   - -         0.0     20 725 320     11 - - - -   - -       As Sand Cast TQ50 0.0 0 MIN 68 90 45     6 - - - -   - 190         0.0     20 620 310     6 - - - -   - 190       TQ50 0.0 0 SMIN 68 90 45     6 - - - -   - 190         0.0     20 621 310     6 - - - -   - 190

---
